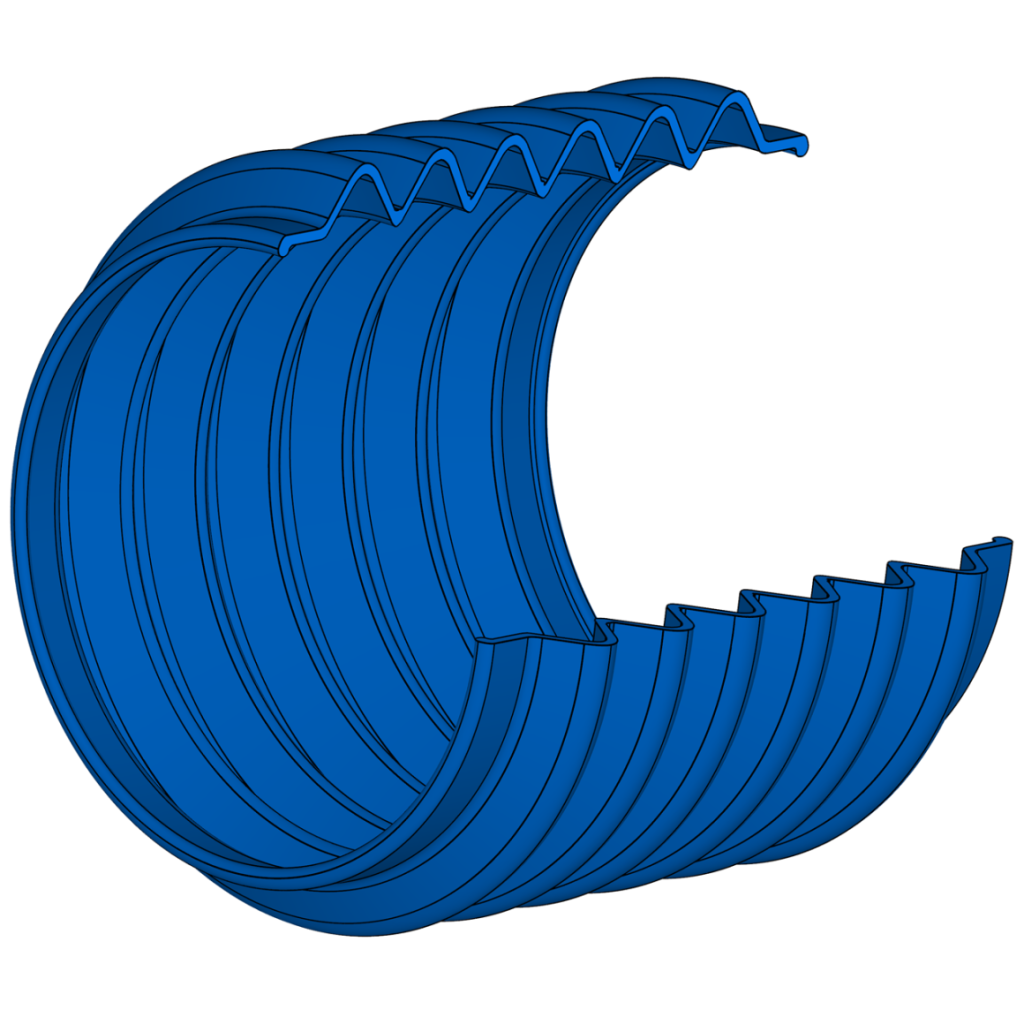

Bellows | CAMC | 5 x 18 x 14.5 x 16 x 24 mm | 45 NBR 670 | 1 PCE

V6-01194 Bellow CAMC | 45 NBR 670 | 5,0 / 18,0 / 14,5 mm

Dimensions & Installation

MetricInch
Installation Sketch

Click on image to get a more detailed view

Connection diameter 1 (A1)5 mm
Connection diameter 2 (A2)18 mm
Seal width (H)14.50 mm
Compressed length (Hmin)5 mm
Elongated length (Hmax)20 mm
Max. outer diameter (Dmax)24 mm
Inner diameter (d)16 mm
Number of folds3
Wall thickness (t)0.60 mm

Additional Attributes

Please contact FST sales representative for ROHS compliance confirmation.

Brand:

Freudenberg

Tool number (engraved) (No.):

V6-01194
