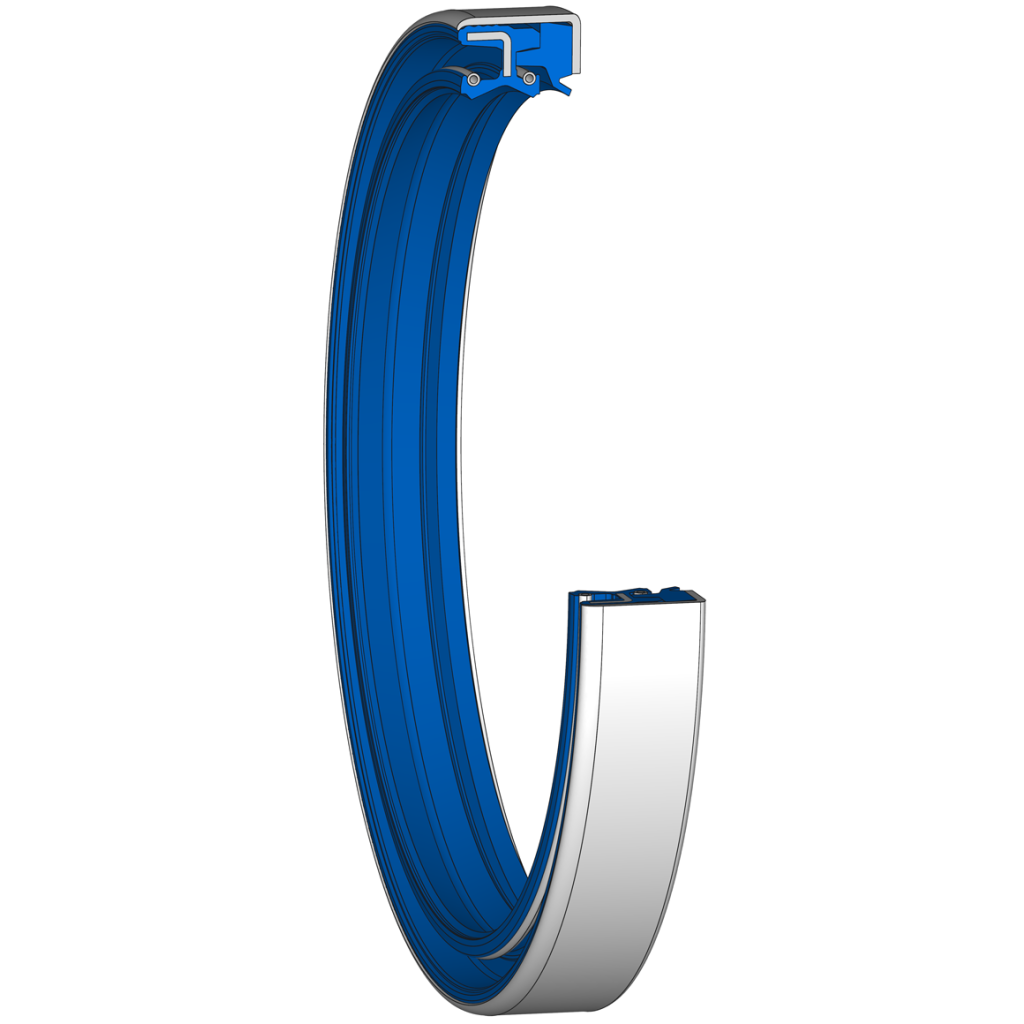

Cassette & Combi Seals | COMBI F6 | 80 x 100 x 18 mm | 72 NBR 902 | 143 PCE

COMBI SF6 | 80,00 X 100,00 X 18,00 / 0,00 mm | 72 NBR 902 | COMBI F6

12014976
-
-
128 GRM
143 PCE
Material not affected by REACH
Please contact FST sales representative for ROHS compliance confirmation.
Please contact FST sales representative for ROHS compliance confirmation.
Freudenberg
72 NBR 902

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d1)80 mm
Outer diameter (d2)100 mm
Seal width (b)18 mm
