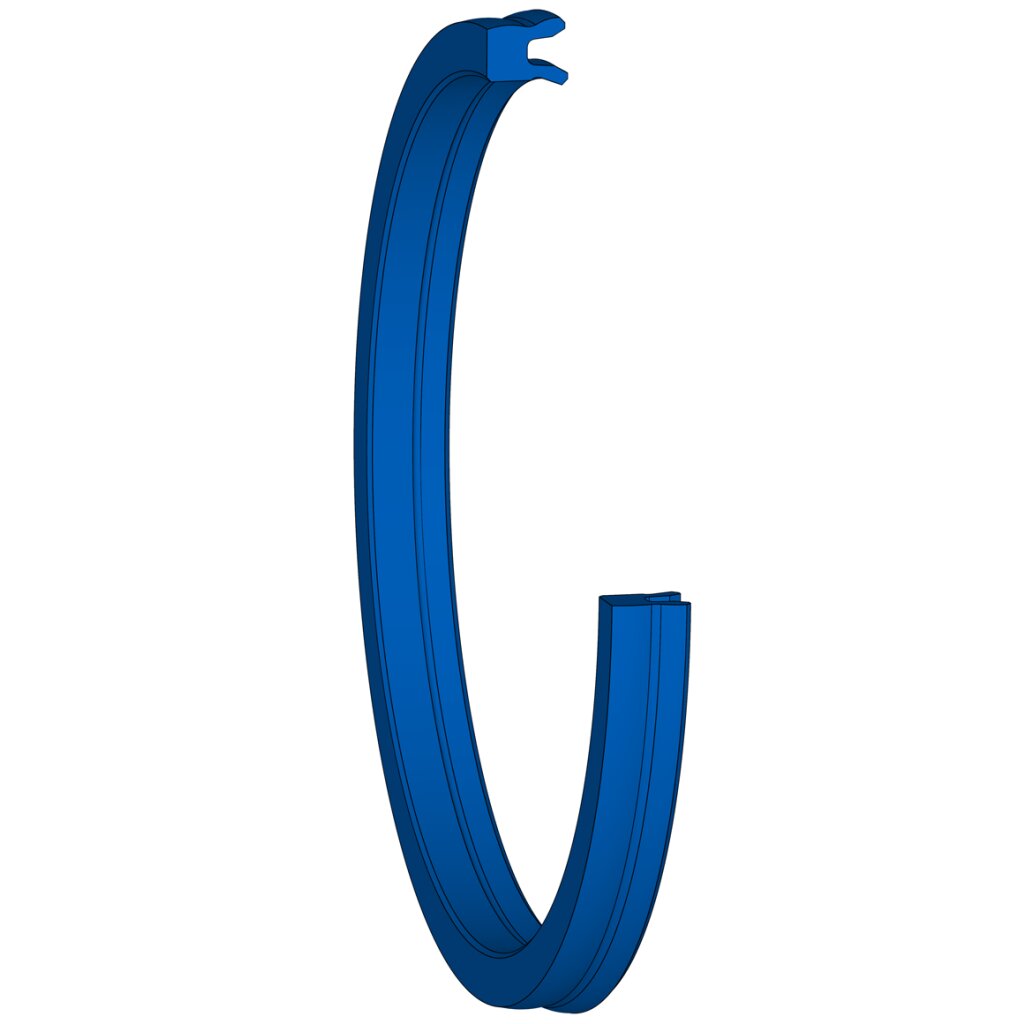

Piston Seals (Pneumatic) | TMP21 | 200 x 170 x 23 mm | 93 AU V167 | 1 PCE

Merkel® Piston-U-Cup series TMP21 | 200,00 X 170,00 X 20,90 / 15,00 mm | 93 AU V167

24370320
  • 370320
-
-
153 GRM
1 PCE
-
Please contact FST sales representative for ROHS compliance confirmation.
Please contact FST sales representative for ROHS compliance confirmation.
Freudenberg
93 AU V167

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)200 mm
Inner diameter (d)170 mm
Seal width (H)20.90 mm
Installation space width (L)23 mm
Lead-in chamfer (C)11.50 mm
