Rod Seals (Pneumatic) | TMP20 | 330 x 360 x 20.9 mm | 93 AU V167 | 1 PCE

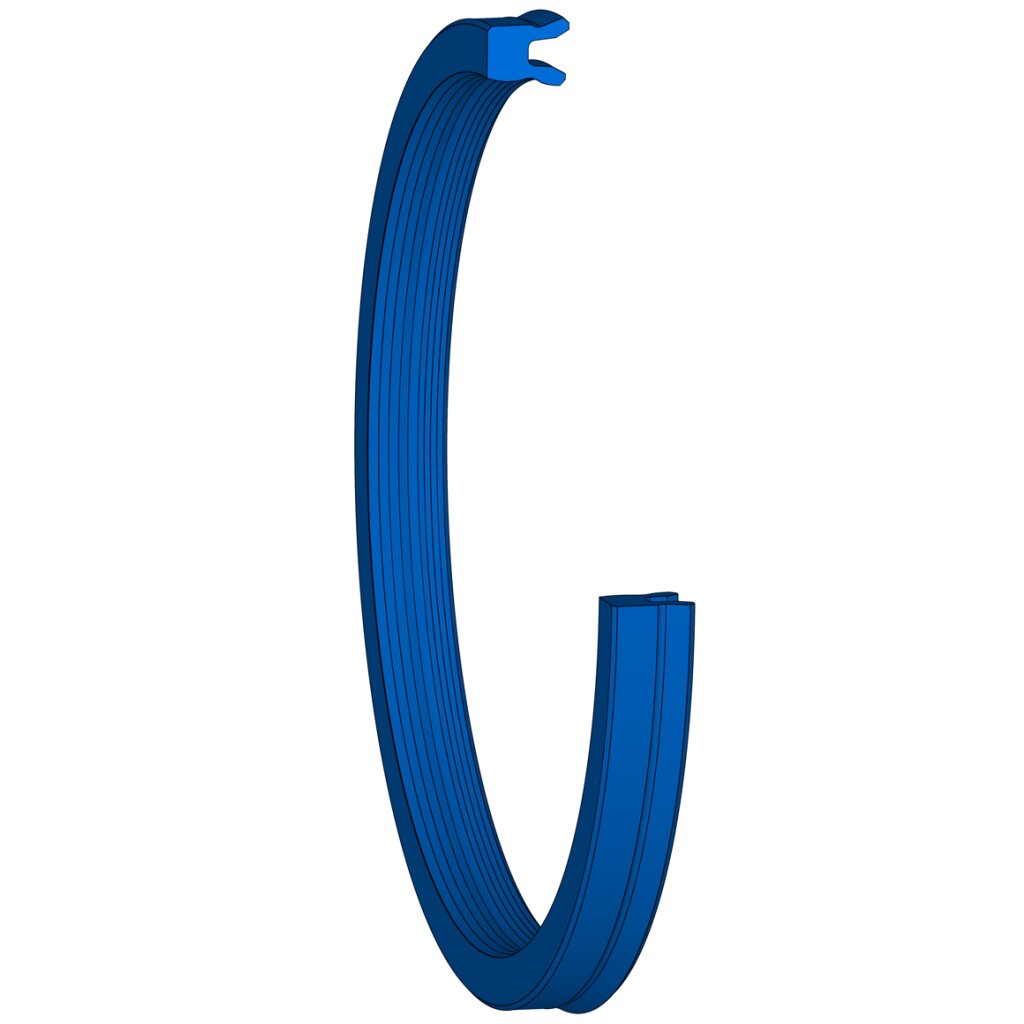

Merkel® Rod-U-Cup series TMP20 | 330,00 X 360,00 X 20,90 / 15,00 mm | 93 AU V167

49001221
-
-
300 GRM
1 PCE
-
Please contact FST sales representative for ROHS compliance confirmation.
Please contact FST sales representative for ROHS compliance confirmation.
Freudenberg
93 AU V167

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)330 mm
Outer diameter (D)360 mm
Seal width (H)20.90 mm
Lead-in chamfer (C)11.50 mm
