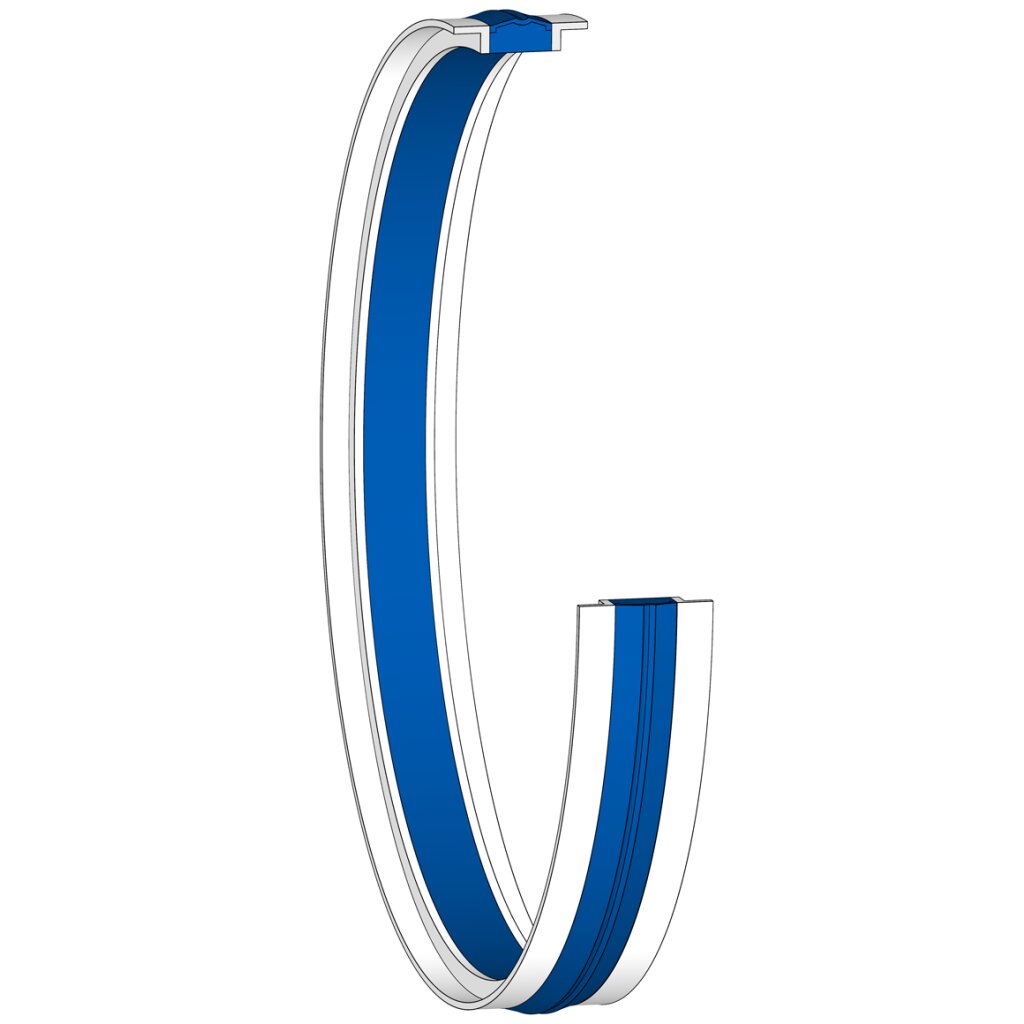

Piston Seals (Hydraulic) | SIMKO 320 | 40 x 32 x 15.5 mm | 80 NBR 878 | 5 PCE

COMPACT seal set series SK320 | SK 00003 | 40,00 X 32,00 X 15,50 / 4,00 mm | 80 NBR 878 / PA Q04007

10618
  • 15273
-
-
11.521 GRM
5 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
80 NBR 878
PA Q04007

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)40 mm
Inner diameter (d)32 mm
Seal width (H)15.50 mm
Installation space width (L)15.50 mm
Lead-in chamfer (C)4 mm
Diameter retaining groove (d1)29 mm
Installation space width (L1)3.20 mm
