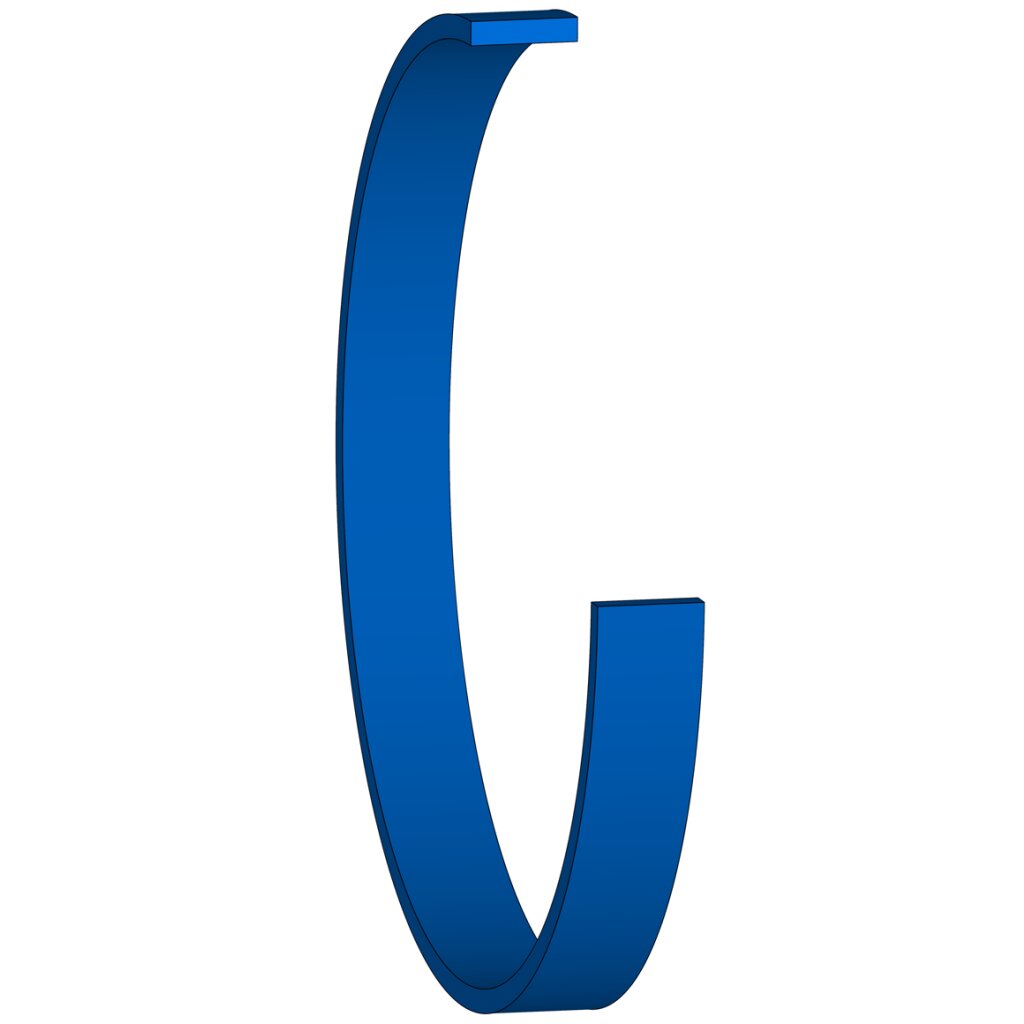

Rod Guide Rings | SB | 25 x 30 x 6.3 mm | HGW HG517 | 1 PCE

Merkel® Guide Bush series SB | 25,00 X 30,00 X 6,20 / 2,50 mm | HGW HG517

49038166
-
-
1.6 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
HGW HG517

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)25 mm
Outer diameter (D)30 mm
Seal width (H)6.20 mm
Installation space width (L)6.30 mm
Profile height (S)2.50 mm
