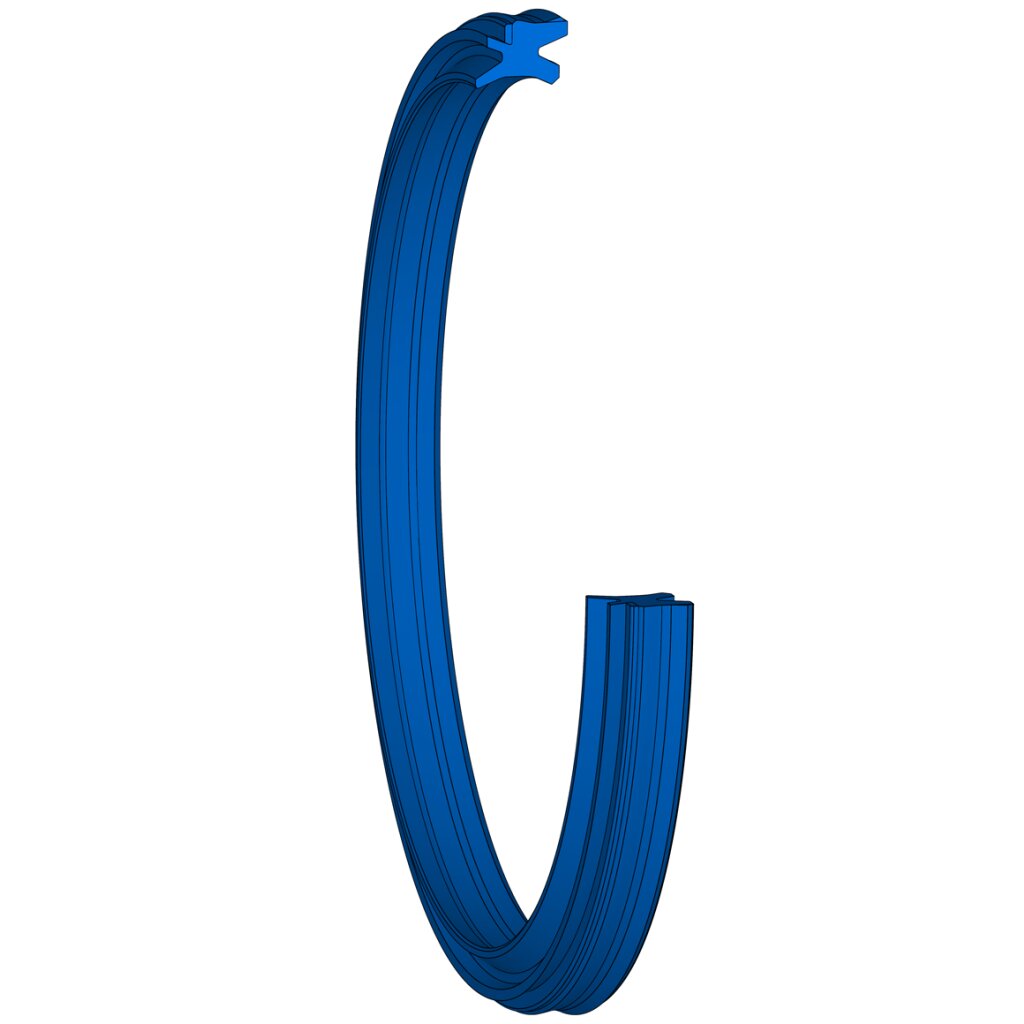

Double Wipers | PRW1 | 30 x 38 x 4 mm | 92 AU 21100 | 5 PCE

Dirt wiper series PRW1 | 30,00 X 38,00 X 4,00 / 4,00 mm | 92 AU 21100

40422530
-
Small Pack (5 PCE)
3.4 GRM
5 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
92 AU 21100

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)30 mm
Outer diameter (D)38 mm
Diameter (D1)36 mm
Seal width (H)7 mm
Installation space width (L)4 mm
Installation space width (L1)6 mm
Radius (R1)0.30 mm
Radius (R2)0.20 mm
