Rod Seals (Hydraulic) | OMEGAT OMS-S | 45 x 60 x 7.5 mm | PTFE GM201 | 1 PCE

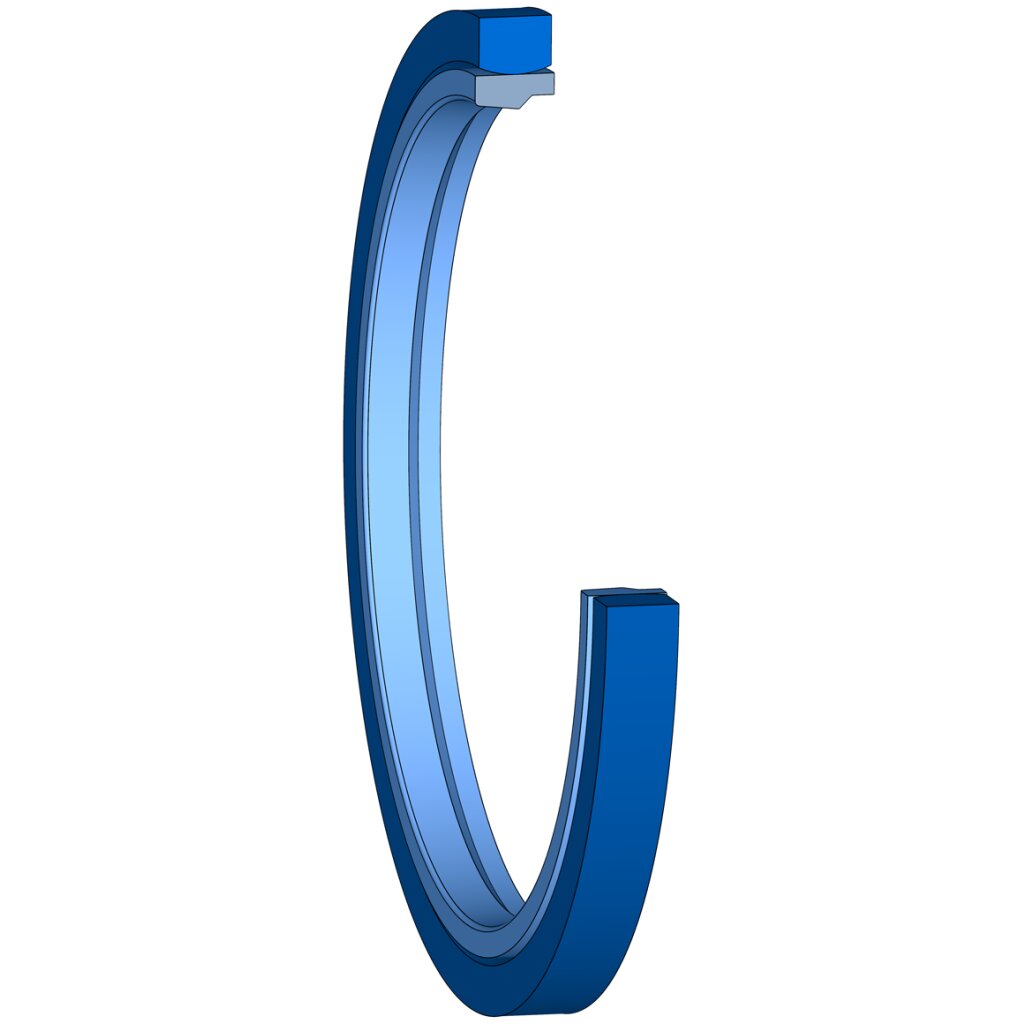

Merkel® Omegat-Seal set EW series OMS-S | | 2-pieces | 45,00 X 60,00 X 7,00 / 7,50 mm | PTFE GM201 / NBR

24096128
  • 0166-096128
-
-
13 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
PTFE GM201
NBR

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)45 mm
Outer diameter (D)60 mm
Seal width (H)7 mm
Installation space width (L)7.50 mm
Lead-in chamfer (C)5.50 mm
Radius (R1)0.40 mm
