Piston Seals (Hydraulic) | OMK-PU | 50 x 34.5 x 6.3 mm | 95 AU V142 | 10 PCE

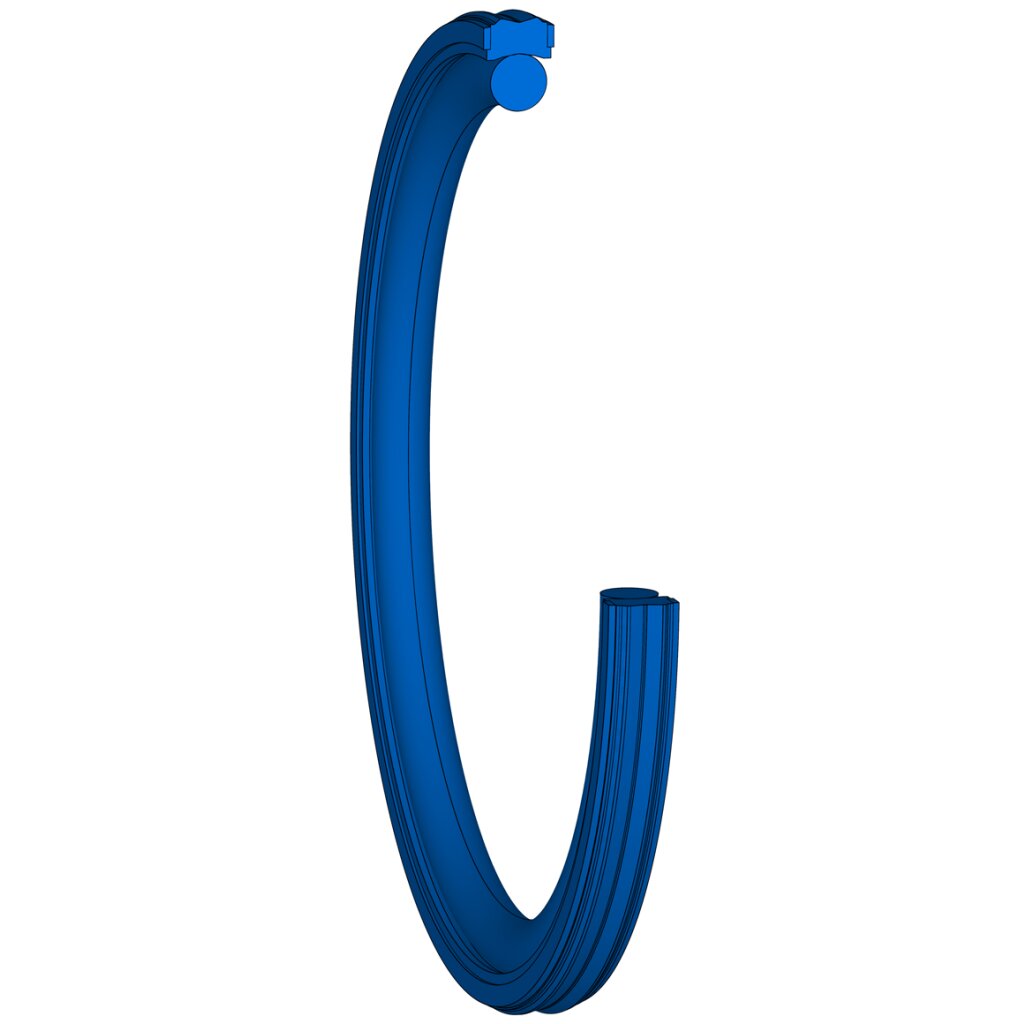

Merkel® Omegat-Seal set DW series OMK-PU | | 2-pieces | 50,00 X 34,50 X 6,00 / 7,75 mm | 95 AU V142 / 70 NBR B276

24341045
  • 341045
-
-
7.001 GRM
10 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
95 AU V142
70 NBR B276

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)50 mm
Inner diameter (d)34.50 mm
Seal width (H)6 mm
Lead-in chamfer (C)6 mm
Radius (R1)0.50 mm
Installation space width (L)6.30 mm
