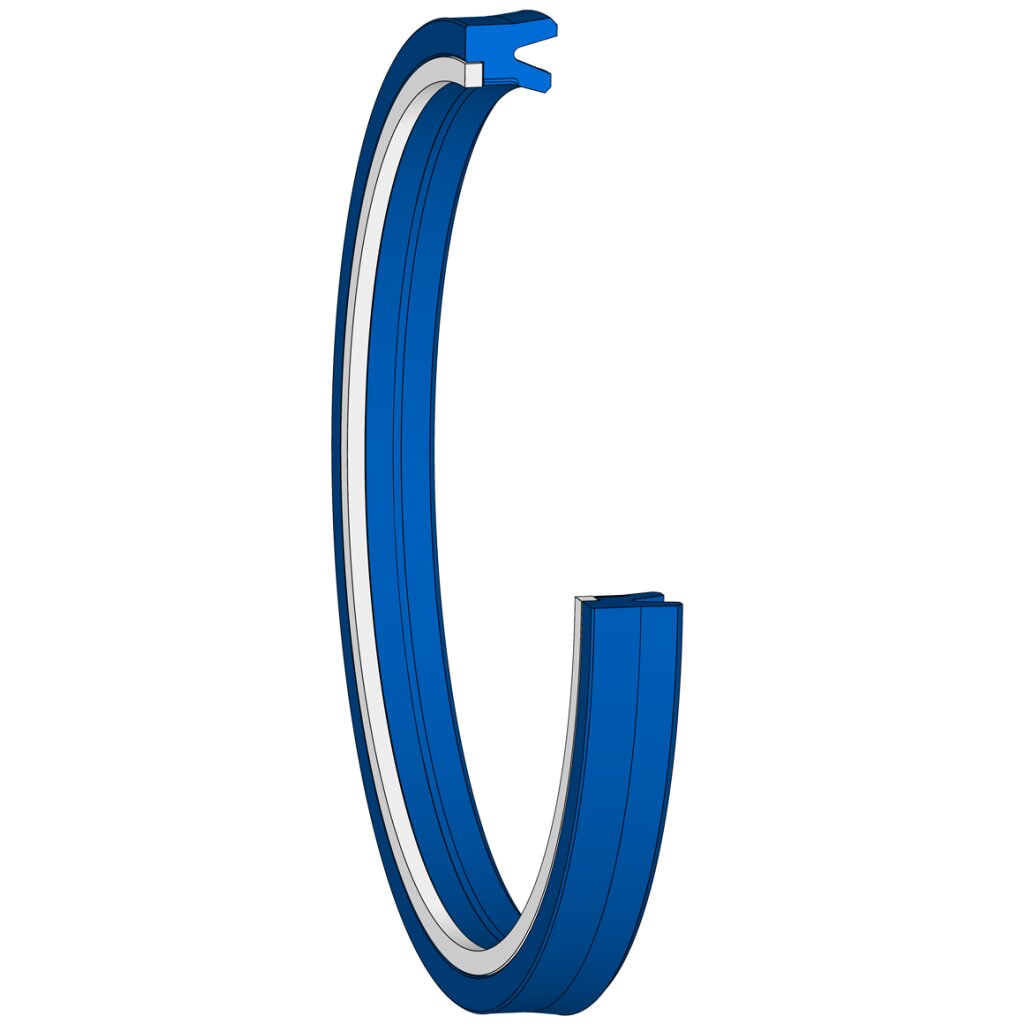

Rod Seals (Hydraulic) | NRS -0216 | 350 x 380 x 26 mm | 80 NBR B246 | 1 PCE

Merkel® Rod-U-Cup set 0216 | 350,00 X 380,00 X 25,00 / 15,00 mm | 80 NBR B246

24250321
-
-
456 GRM
1 PCE
-
Please contact FST sales representative for ROHS compliance confirmation.
Please contact FST sales representative for ROHS compliance confirmation.
Freudenberg
80 NBR B246

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)350 mm
Outer diameter (D)380 mm
Seal width (H)25 mm
Installation space width (L)26 mm
Lead-in chamfer (C)7.50 mm
