Rod Seals (Hydraulic) | NI300 | 15 x 25 x 9 mm | 94 AU 925 | 5 PCE

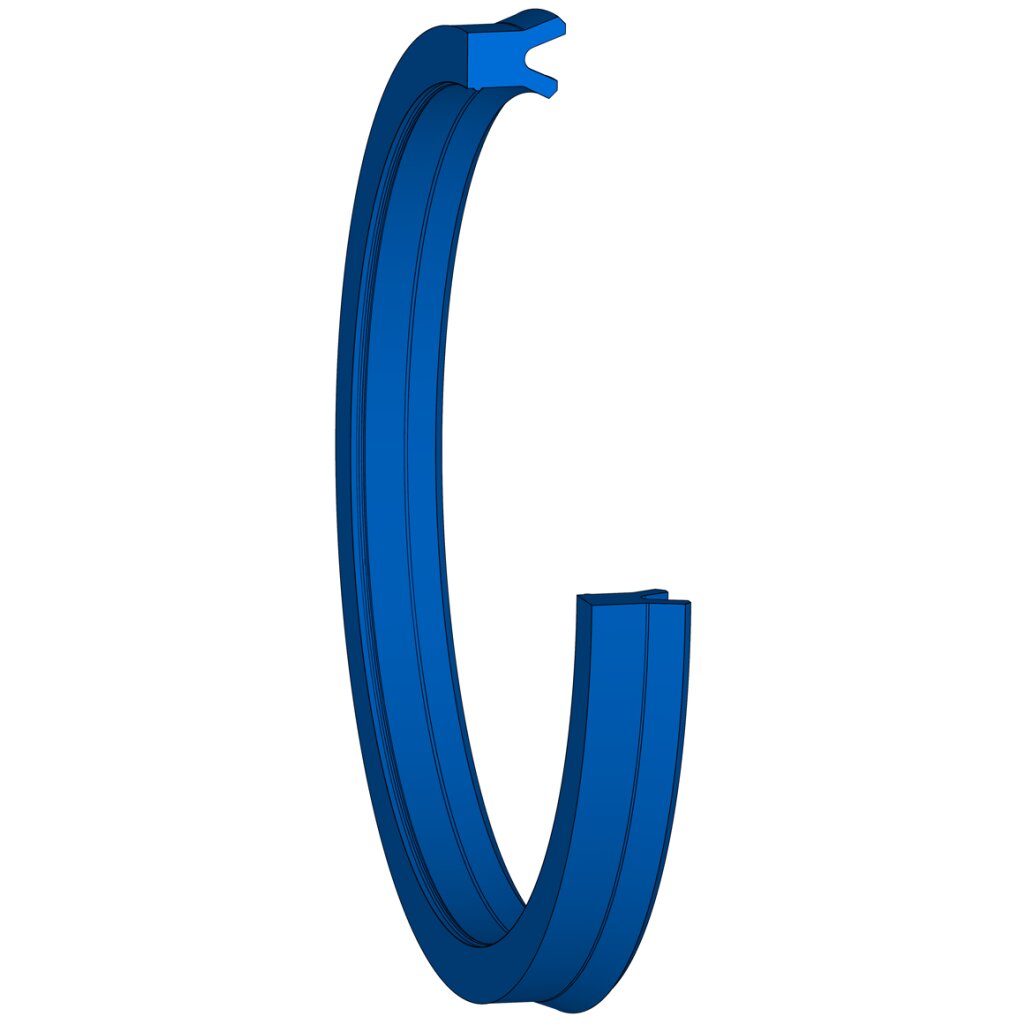

U-ring seal series NI300 | XN 09054 | 15,00 X 25,00 X 8,00 / 5,00 mm | 94 AU 925

40421605
-
Small Pack (5 PCE)
2.521 GRM
5 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
94 AU 925

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)15 mm
Outer diameter (D)25 mm
Seal width (H)8 mm
Installation space width (L)9 mm
Lead-in chamfer (C)4 mm
PRD(GLOBAL) - 20250616.7
