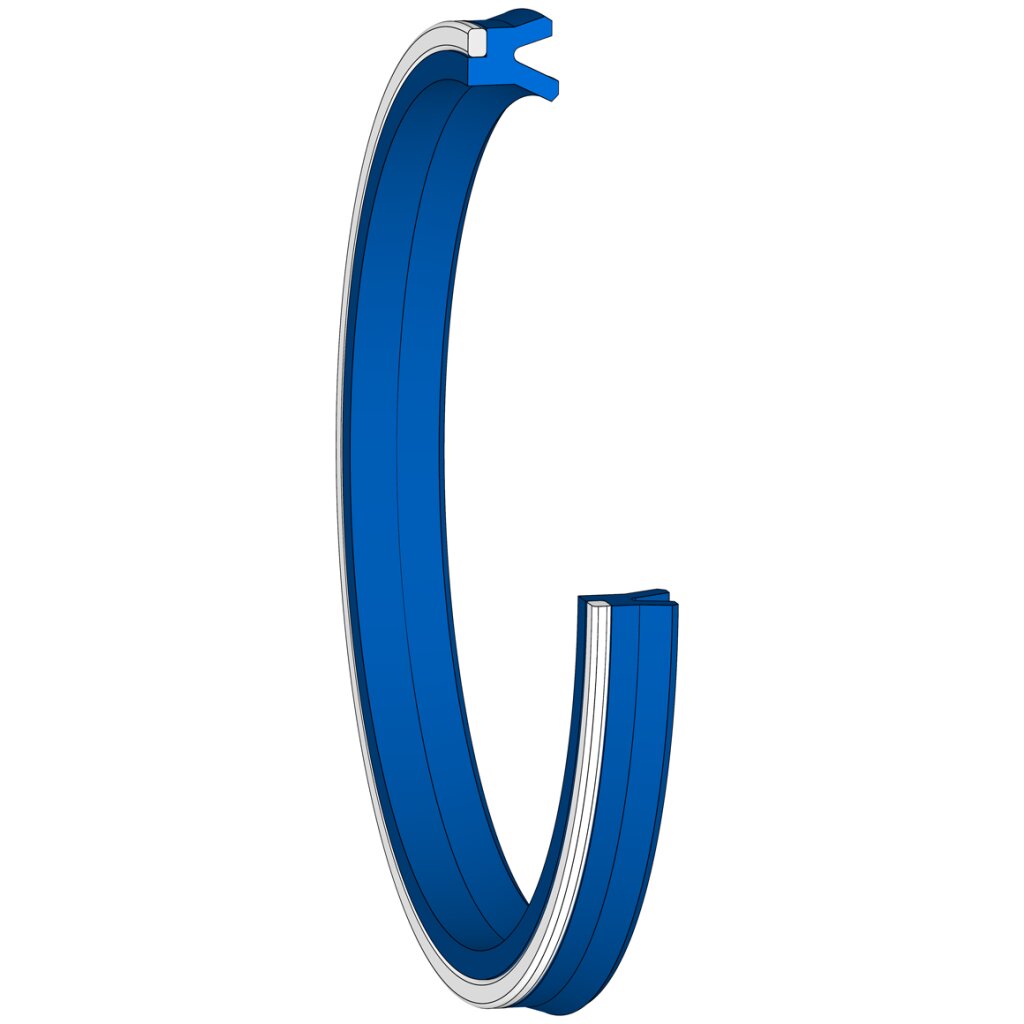

Piston Seals (Hydraulic) | NA250 | 80 x 65 x 13 mm | 80 NBR 878 | 1 PCE

U-ring seal set series NA250 | 80,00 X 65,00 X 12,00 / 7,50 mm | 80 NBR 878 / POM Q09920

18465
  • 208292
  • MEK-NA250-18465
-
-
23 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
80 NBR 878
POM Q09920

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)80 mm
Inner diameter (d)65 mm
Seal width (H)12 mm
Installation space width (L)13 mm
Lead-in chamfer (C)5.50 mm
