Swivel Seals | M16 | 800 x 772 x 9.5 mm | PTFE GM201 | 1 PCE

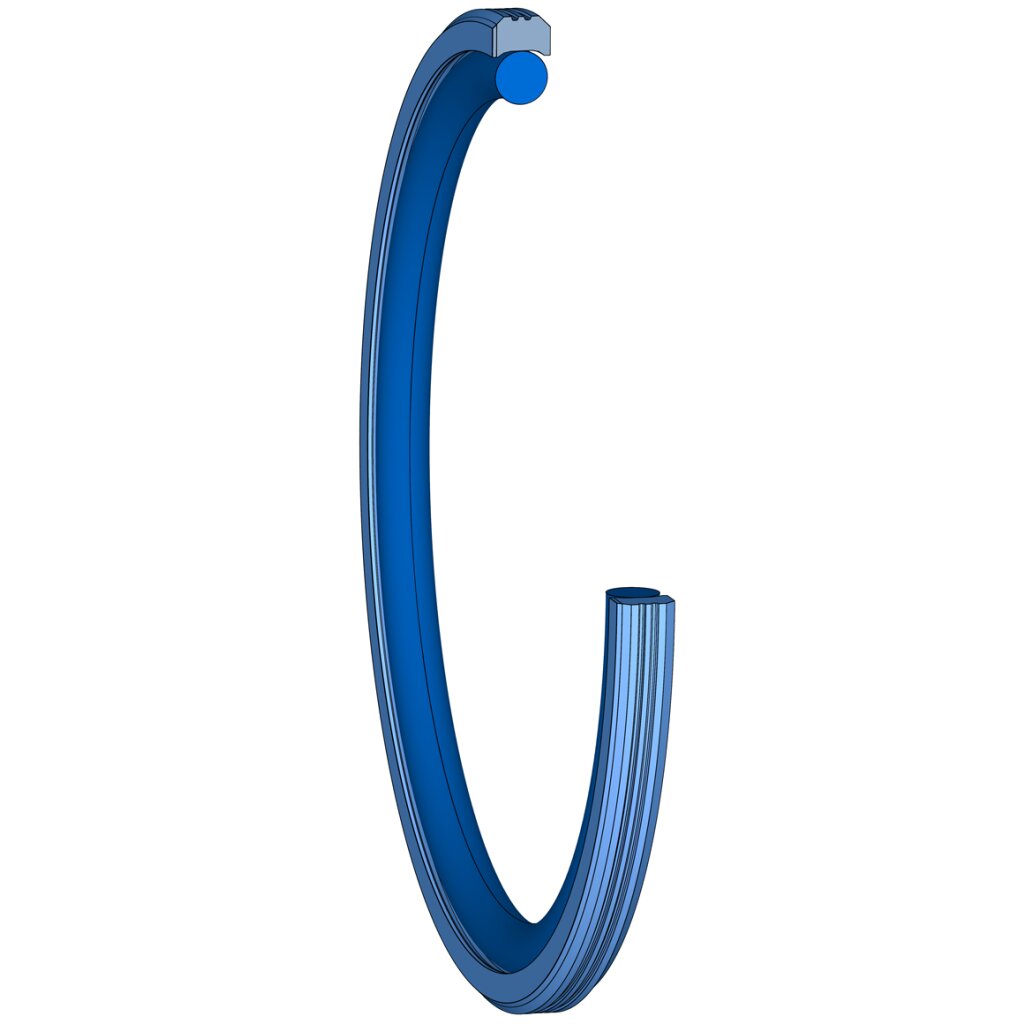

Merkel® Rotomatic-Seal set series M16 | | 2-pieces | 800,00 X 772,00 X 9,10 / 14,00 mm | PTFE GM201 / NBR

24374719
-
-
500 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
PTFE GM201
NBR

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)772 mm
Outer diameter (D)800 mm
Installation space width (L)9.50 mm
Lead-in chamfer (C)13 mm
Radius (R1)2 mm
Seal width (H)9.10 mm
