Swivel Seals | M15 | 85 x 100.5 x 6.3 mm | PTFE GM201 | 1 PCE

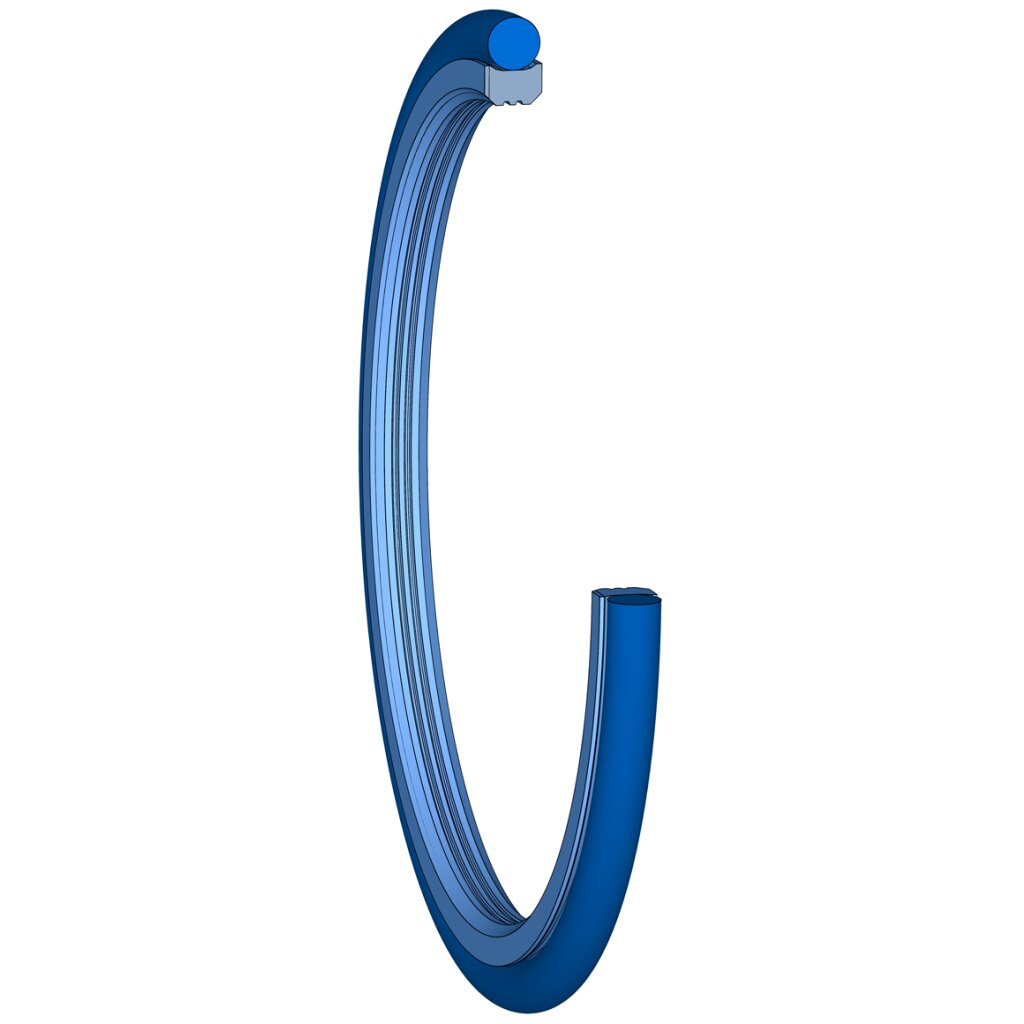

Merkel® Rotomatic-Seal set series M15 | | 2-pieces | 85,00 X 100,50 X 5,90 / 7,75 mm | PTFE GM201 / FKM

24374977
  • 374977
-
-
20 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
PTFE GM201
FKM

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)85 mm
Outer diameter (D)100.50 mm
Installation space width (L)6.30 mm
Radius (R1)0.80 mm
Lead-in chamfer (C)6 mm
Seal width (H)5.90 mm
