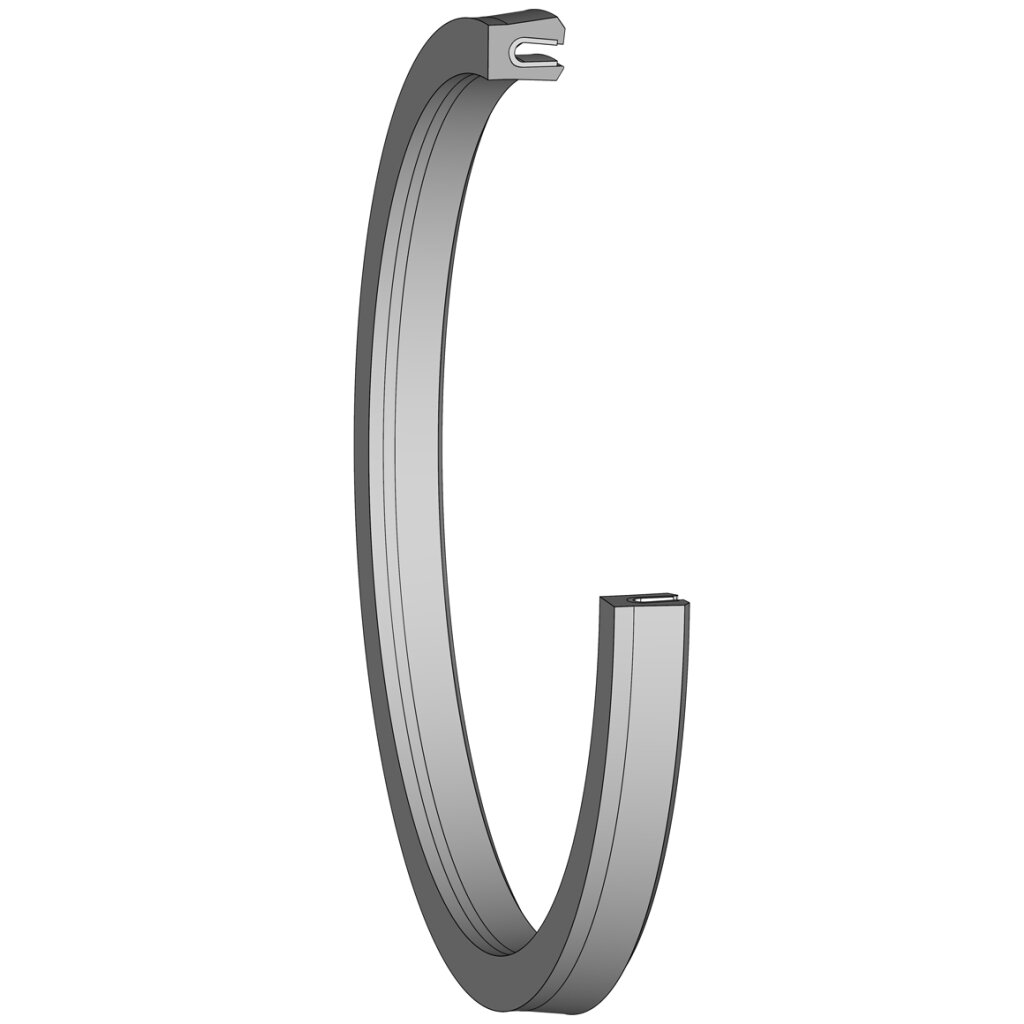

Piston Seals (Hydraulic) | KNA44 | 50 x 40.6 x 7.1 mm | PTFE PT009808 | 1 PCE

KNA44 | 50,00 X 40,60 X 7,1 mm | PTFE PT009808 | DICHTOMATIK Piston Seal KNA44 |

67110565
  • MA44-50X40.6X7.1
  • 110565
-
-
5.64 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Dichtomatik
PTFE PT009808

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)50 mm
Inner diameter (d)40.60 mm
Installation space width (L)7.10 mm
Seal width (H)6.50 mm
