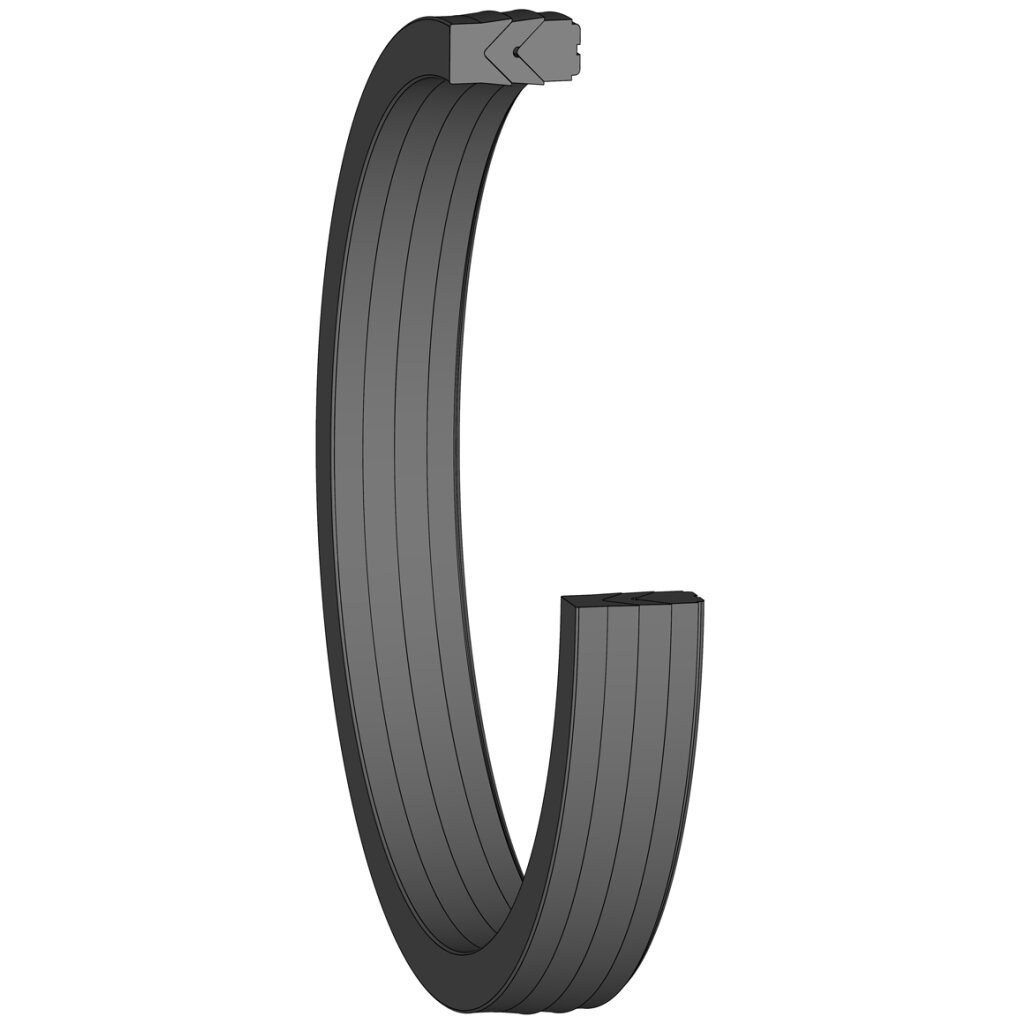

V-Packing Set | KDS01 | 130 x 160 x 29 mm | 85 NBR NF855501 | 1 PCE

DICHTOMATIK Piston Seal KDS01 | 160,00 X 130,00 X 29,00 / 15,00 mm | 85 NBR NF855501 / POM PO005501 Black |

67189755
  • 189755
-
-
231.7 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Dichtomatik
85 NBR NF855501
POM PO005501

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)130 mm
Outer diameter (D)160 mm
Seal width (H)28 mm
Installation space width (L)29 mm
