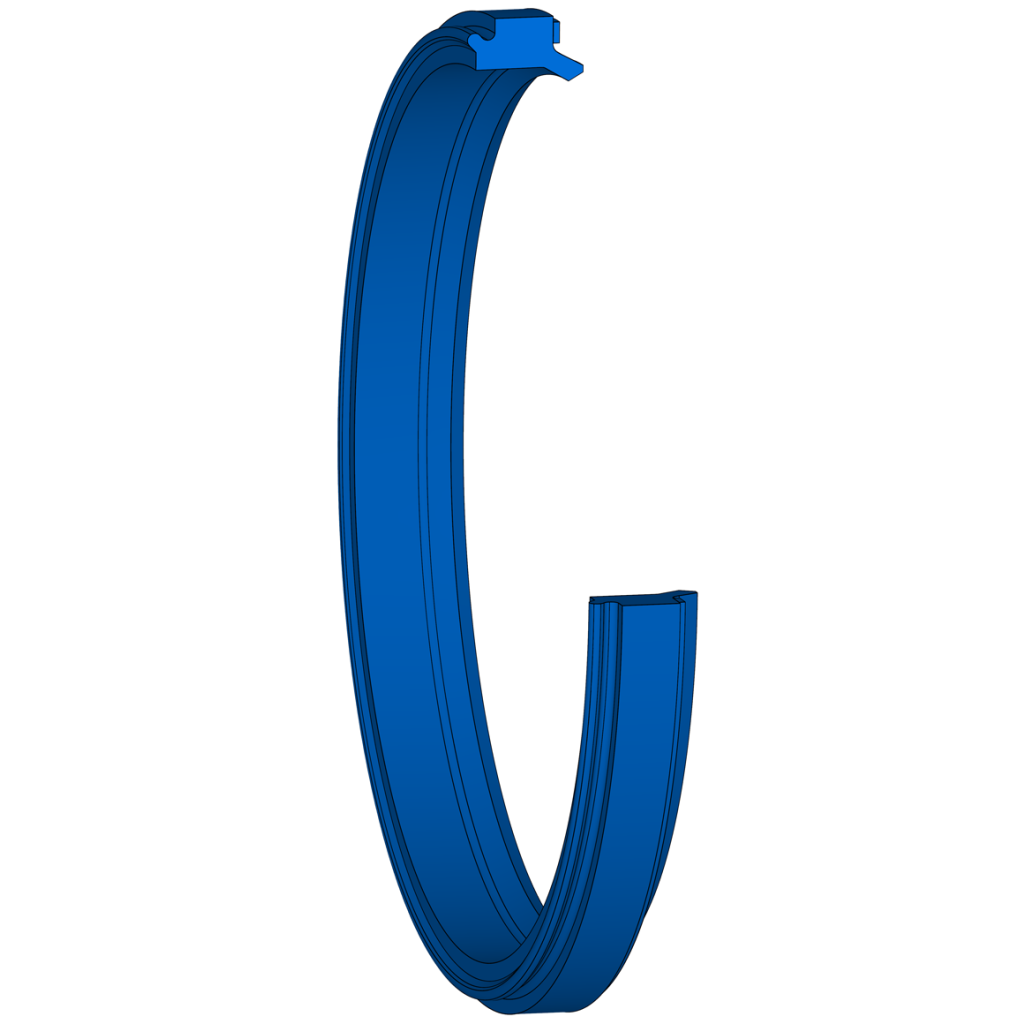

Damping Seals | DIP | 28 x 36 x 7 mm | 90 NBR 108 | 1 PCE

Buffer seal set style DIP | 28,00 X 36,00 X 8,00 / mm | 90 NBR 108

408753
-
-
2.96 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
90 NBR 108

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Inner diameter (d)28 mm
Outer diameter (D)36 mm
Seal width (H)8 mm
Seal width (H1)6.50 mm
Installation space width (L)7 mm
Rod diameter (d1)24 mm
Diameter (D1)29 mm
Diameter (D2)32 mm
