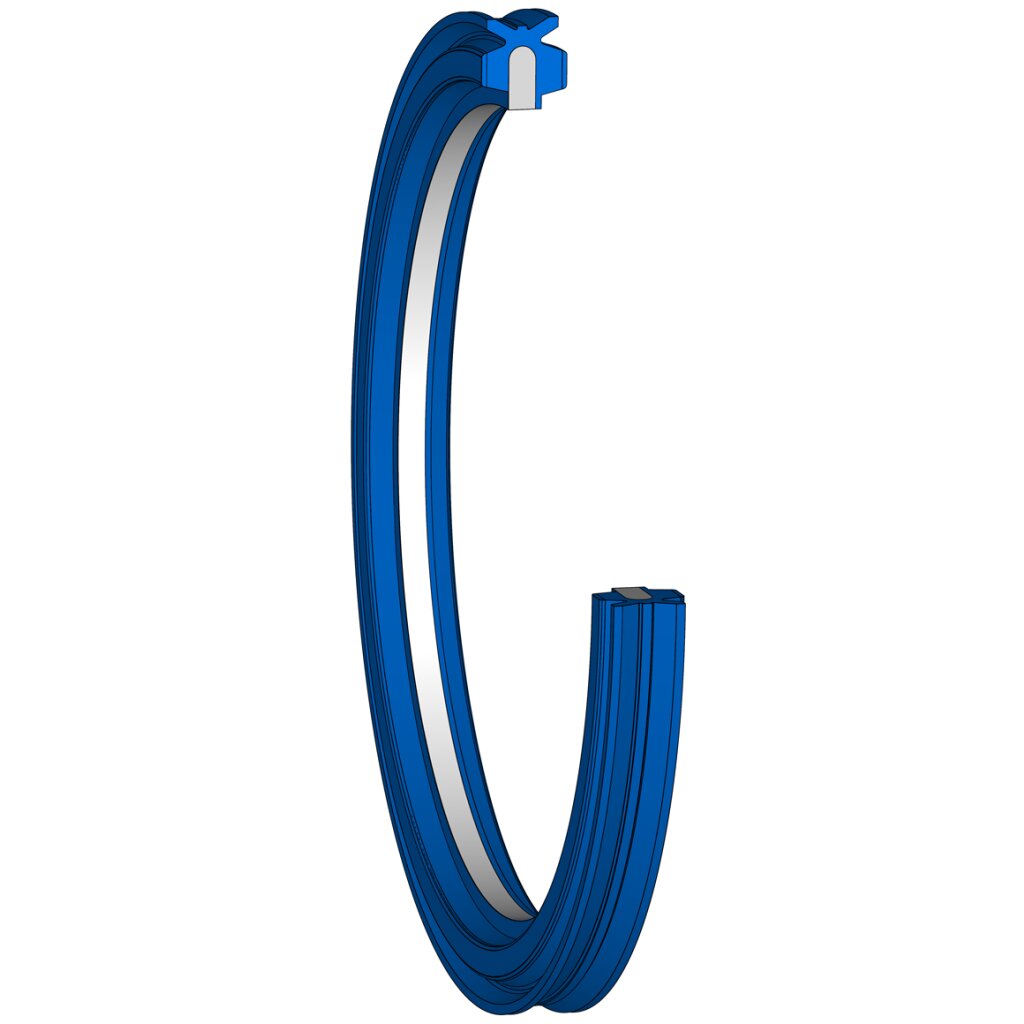

Piston Seals (Pneumatic) | NADUOP | 63 x 16 x 9.5 mm | 72 NBR 708 | 1 PCE

Piston complet series NA DUO P | 63,00-001 | 63,00 X 16,00 X 9,50 / 23,50 mm | 72 NBR 708

451146
-
-
109.001 GRM
1 PCE
Material not affected by REACH
COMPLIANT
COMPLIANT
Freudenberg
72 NBR 708

Dimensions & Installation

Installation Sketch

Click on image to get a more detailed view

Outer diameter (D)63 mm
Inner diameter (d)16 mm
Seal width (H)9.50 mm
Diameter washer (d2)35.50 mm
Rod diameter (d1)58.80 mm
