Radiamatic® | R35 | 100 x 130 x 16 mm | 80 NBR B241 | 1 PCE

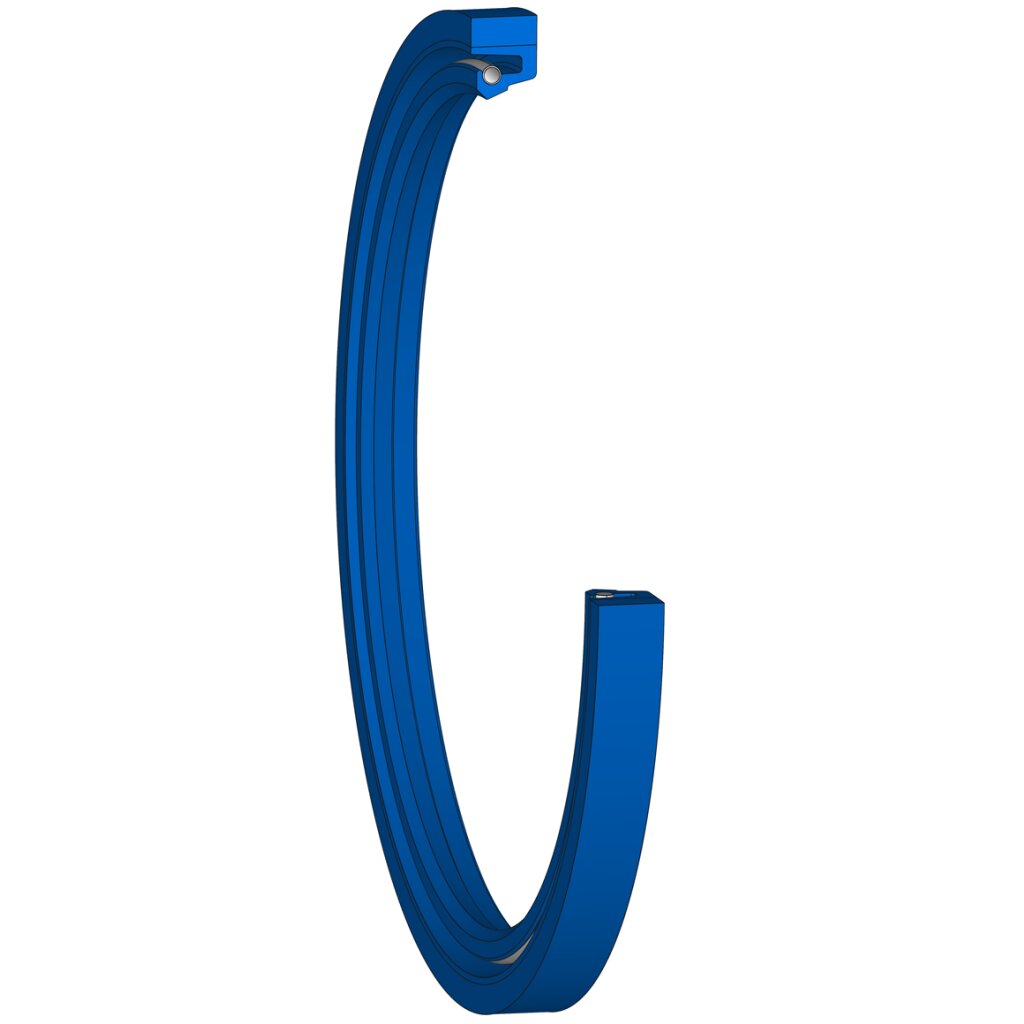

R35 | 100,00 X 130,00 X 16,5 mm | 80 NBR B241 | Merkel® Radiamatic® series R35 Sealing with spring

Dimensions & Installation

MetricInch
Installation Sketch

Click on image to get a more detailed view

Inner diameter (d1)100 mm
Outer Diameter (d2)130 mm
Installation space width (L)16 mm
Seal width (b)16.50 mm
Lead-in chamfer (C)8 mm

Additional Attributes

Please contact FST sales representative for ROHS compliance confirmation.
